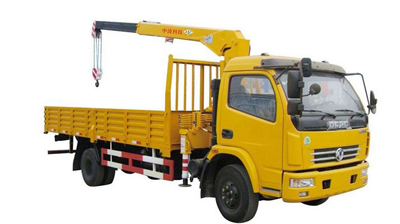

ZTSQ302S Two arm of 3.5 ton
ZTSQ302S Two arm of 3.5 ton crane basic parameters
|
1 |
Max.Lift weight rating( kg)
|
3500 |
11 |
Full Tank Capacity of Hydraulic oil(L) |
45 |
|
2 |
Max.Operating Diameter(mm)
|
5375 |
12 |
outrigger speed(mm/s) |
2160/18 |
|
3 |
Max.Lift Moment(n.m)
|
78000 |
13 |
Hook Lift speed(m/min) |
8-12 |
|
4 |
Max.Lifting Height(m) |
7300 |
14 |
legs horizontal travel (mm) |
1250 |
|
5 |
Luffing angle range(°) |
1-73° |
15 |
legs distance( mm) |
3100 |
|
6 |
Amplitude-Time°/S |
1-73/13 |
16 |
Working Pressure of Hydraulic system(mpa) |
16 |
|
7 |
Swivel Angle Range(°) |
360° |
17 |
first arm of length (mm) |
3215 |
|
8 |
Swivel speed (rpm) |
2.0-3.0 |
18 |
second arm of length (mm) |
3215-5375 |
|
9 |
outrigger travel(mm) |
2160 |
19 |
Winch rope specifications |
8mm×40m |
|
10 |
System rated flow(L/min) |
45 |
20 |
Crane Weight rating(kg) |
980 |
Lifting ability to table
|
work radius(m) |
2.0 |
2.5 |
3.0 |
3.5 |
4.0 |
4.5 |
5.0 |
5.38 |
|
Largest Load(kg) |
3500 |
2600 |
2100 |
1780 |
1530 |
1330 |
1180 |
1080 |
Note:the maximum load intensity as the conditions in crane,when the vehicle stability is insufficient,the datawill be reduced!
