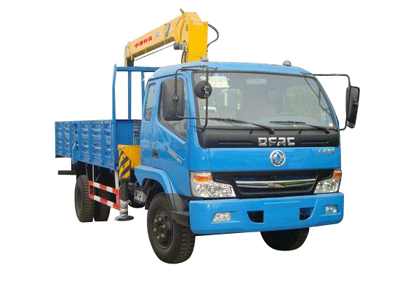

ZTSQ503Sb three arm of 5 ton
ZTSQ503Sb three arm of 5 ton crane basic parameters
|
1 |
Max.Lift weight rating( kg) |
5000 |
11 |
outrigger speed(mm/s) |
4710/22 |
|
2 |
Max.Operating Diameter(mm) |
8060 |
12 |
Hook Lift speed(m/min) |
8-12 |
|
3 |
Max.Lift Moment(n.m) |
120000 |
13 |
legs horizontal travel (mm) |
2717 |
|
4 |
Max.Lifting Height(m) |
10000 |
14 |
legs distance( mm) |
4740 |
|
5 |
Luffing angle range(°) |
1-73° |
15 |
Working Pressure of Hydraulic system(mpa) |
17.5 |
|
6 |
Amplitude-Time°/S |
1-73/13 |
16 |
first arm of length (mm) |
3351 |
|
7 |
Swivel Angle Range(°) |
360° |
17 |
second arm of length (mm) |
3351-5706 |
|
8 |
Swivel speed (rpm) |
2.0-2.5 |
18 |
Third arm of length (mm) |
5706-8061 |
|
9 |
outrigger travel(mm) |
4710 |
19 |
Winch rope specifications |
9.3mm×55m |
|
10 |
System rated flow(L/min) |
50 |
20 |
Crane Weight rating(kg) |
1650 |
Lifting ability to table
|
work radius(m) |
2.25 |
2.5 |
3.0 |
3.5 |
4.0 |
4.5 |
5.0 |
5.5 |
6.0 |
7.0 |
7.5 |
8.06 |
|
Largest Load(kg) |
5000 |
4470 |
3680 |
3110 |
2670 |
2360 |
2070 |
1790 |
1570 |
1400 |
1250 |
1030 |
Note:the maximum load intensity as the conditions in crane,when the vehicle stability is insufficient,the datawill be reduced!
