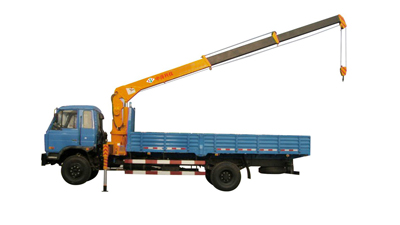

ZTSQ703S three arm of 7ton
ZTSQ703S three arm of 7 ton crane basic parameters
|
1 |
Max.Lift weight rating( kg) |
7000 |
11 |
outrigger speed(mm/s) |
5310/25 |
|
2 |
Max.Operating Diameter(mm) |
9063 |
12 |
Hook Lift speed(m/min) |
8-12 |
|
3 |
Max.Lift Moment(n.m) |
154000 |
13 |
legs horizontal travel (mm) |
2717 |
|
4 |
Max.Lifting Height(m) |
11050 |
14 |
legs distance( mm) |
4740 |
|
5 |
Luffing angle range(°) |
1-73° |
15 |
Working Pressure of Hydraulic system(mpa) |
21 |
|
6 |
Amplitude-Time°/S |
1-73/13 |
16 |
first arm of length (mm) |
3733 |
|
7 |
Swivel Angle Range(°) |
360° |
17 |
second arm of length (mm) |
3733-6398 |
|
8 |
Swivel speed (rpm) |
2.0-2.5 |
18 |
Third arm of length (mm) |
6398-9063 |
|
9 |
outrigger travel(mm) |
5310 |
19 |
Winch rope specifications |
9.3mm×75m |
|
10 |
System rated flow(L/min) |
60 |
20 |
Crane Weight rating(kg) |
1950 |
Lifting ability to table
|
work radius(m) |
2.1 |
2.4 |
2.5 |
3.0 |
3.5 |
4.0 |
4.5 |
5.0 |
|
Largest Load(kg) |
7000 |
6300 |
6000 |
4800 |
4100 |
3400 |
2860 |
2200 |
|
work radius(m) |
5.5 |
6.0 |
6.5 |
7.0 |
7.5 |
8.0 |
8.5 |
9.06 |
|
Largest Load(kg) |
1900 |
1570 |
1400 |
1250 |
1130 |
1030 |
960 |
900 |
Note:the maximum load intensity as the conditions in crane,when the vehicle stability is insufficient,the datawill be reduced!
