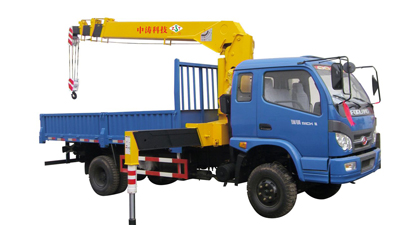

ZTSQ704S four arm of 7 ton
ZTSQ704S four arm of 7 ton crane basic parameters
|
1 |
Max.Lift weight rating( kg) |
7000 |
11 |
outrigger speed(mm/s) |
7965/30 |
|
2 |
Max.Operating Diameter(mm) |
12108 |
12 |
legs horizontal travel (mm) |
2717 |
|
3 |
Max.Lift Moment(n.m) |
154000 |
13 |
legs distance( mm) |
4740 |
|
4 |
Max.Lifting Height(m) |
14000 |
14 |
Working Pressure of Hydraulic system(mpa) |
21 |
|
5 |
Luffing angle range(°) |
1-73° |
15 |
first arm of length (mm) |
4113 |
|
6 |
Amplitude-Time°/S |
1-73/13 |
16 |
second arm of length (mm) |
4113-6778 |
|
7 |
Swivel Angle Range(°) |
360° |
17 |
Third arm of length (mm) |
6778-9443 |
|
8 |
Swivel speed (rpm) |
2.0-2.5 |
18 |
Four arm of length (mm) |
9443-12108 |
|
9 |
outrigger travel(mm) |
7965 |
19 |
Winch rope specifications |
9.3mm×90m |
|
10 |
System rated flow(L/min) |
60 |
20 |
Crane Weight rating(kg) |
2100 |
Lifting ability to table
|
work radius(m) |
2.2 |
2.5 |
3.0 |
3.5 |
4.0 |
4.5 |
5.0 |
5.5 |
|
Largest Load(kg) |
7000 |
6300 |
5000 |
4000 |
3500 |
2500 |
2200 |
2000 |
|
work radius(m) |
6.0 |
6.5 |
7.0 |
7.5 |
8.0 |
8.5 |
9.0 |
9.5 |
|
Largest Load(kg) |
2000 |
1800 |
1630 |
1500 |
1350 |
1260 |
1160 |
1080 |
|
work radius(m) |
10 |
10.5 |
11 |
11.5 |
12.1 |
|
|
|
|
Largest Load(kg) |
1000 |
930 |
860 |
800 |
750 |
|
|
|
Note:the maximum load intensity as the conditions in crane,when the vehicle stability is insufficient,the datawill be reduced!
