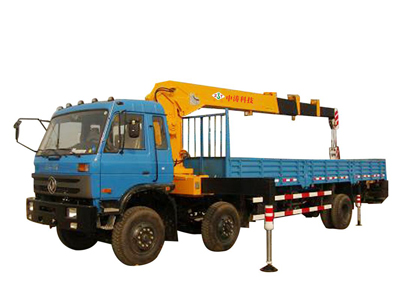

ZTSQ904S four arm of 9 ton
ZTSQ904S four arm of 9 ton crane basic parameters
|
1 |
Max.Lift weight rating( kg) |
9000 |
11 |
outrigger speed(mm/s) |
8700/40 |
|
2 |
Max.Operating Diameter(mm) |
12904 |
12 |
legs horizontal travel (mm) |
3115 |
|
3 |
Max.Lift Moment(n.m) |
200000 |
13 |
legs distance( mm) |
5410 |
|
4 |
Max.Lifting Height(m) |
15000 |
14 |
Working Pressure of Hydraulic system(mpa) |
24 |
|
5 |
Luffing angle range(°) |
1-73° |
15 |
first arm of length (mm) |
4204 |
|
6 |
Amplitude-Time°/S |
1-73/13 |
16 |
second arm of length (mm) |
4204-7104 |
|
7 |
Swivel Angle Range(°) |
360° |
17 |
Third arm of length (mm) |
7104-10004 |
|
8 |
Swivel speed (rpm) |
1.5-2.5 |
18 |
Four arm of length (mm) |
10004-12904 |
|
9 |
outrigger travel(mm) |
8700 |
19 |
Winch rope specifications |
9.3mm×125m |
|
10 |
System rated flow(L/min) |
80 |
20 |
Crane Weight rating(kg) |
2800 |
Lifting ability to table
|
work radius(m) |
2.2 |
2.5 |
3.0 |
3.5 |
4.0 |
4.5 |
5.0 |
5.5 |
|
Largest Load(kg) |
9000 |
7650 |
6300 |
5350 |
4620 |
4050 |
3600 |
3240 |
|
work radius(m) |
6.0 |
6.5 |
7.0 |
7.5 |
8.0 |
8.5 |
9.0 |
9.5 |
|
Largest Load(kg) |
2940 |
2680 |
2450 |
2250 |
2080 |
1920 |
1780 |
1650 |
|
work radius(m) |
10.0 |
10.5 |
11.0 |
11.5 |
12.0 |
12.5 |
12.9 |
|
|
Largest Load(kg) |
1550 |
1450 |
1350 |
1250 |
1150 |
1100 |
1000 |
|
Note:the maximum load intensity as the conditions in crane,when the vehicle stability is insufficient,the datawill be reduced!
