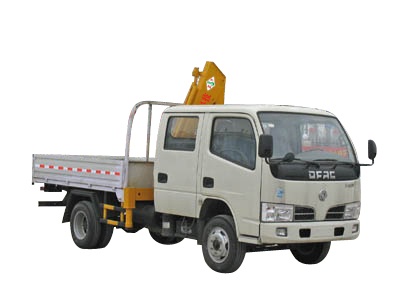

ZTSQ204Z four arm of two ton
|
1 |
Max.Lift weight rating( kg) |
2000 |
|
2 |
Max.OperatingDiameter(mm) |
4650 |
|
3 |
Max.Lift Moment ( N.m) |
30000 |
|
4 |
Max.Lifting height(mm) |
6500 |
|
5 |
Luffing Angle range(°) |
﹣65°~﹢65° |
|
6 |
Luffing time( °／s) |
130／13 |
|
7 |
Rotary angle range ( °) |
360 |
|
8 |
Rotary rapidity( rpm) |
2.0-3.0 |
|
9 |
outrigger travel( mm) |
2000（hydraulic pressure﹢1040（manually） |
|
10 |
System rated flow (L／min) |
25 |
|
11 |
tank space( L) |
30 |
|
12 |
outrigger speed( m／s) |
2／12 |
|
13 |
hook lift speed(m/min) |
8﹣12 |
|
14 |
legs horizontal travel (mm) |
850 |
|
15 |
legs distance( mm) |
2522 |
|
16 |
Working Pressure of Hydraulic system(mpa) |
16 |
|
17 |
Arm length (mm) |
1585﹣4625 |
|
18 |
Winch rope specifications |
φ6mm×30m |
|
19 |
basket quality of rated load( kg) |
280 |
|
20 |
Crane weight rating( kg) |
980 |
Lifting ability to table
|
(kg)
（°） |
1.56 |
2.56 |
3.56 |
4.6 |
|
0° |
1750 |
1000 |
700 |
520 |
|
5° |
1780 |
1050 |
710 |
530 |
|
10° |
1800 |
1080 |
720 |
540 |
|
20° |
1890 |
1100 |
750 |
560 |
|
30° |
2000 |
1200 |
850 |
580 |
|
40° |
2000 |
1380 |
950 |
760 |
|
50° |
2000 |
1700 |
1150 |
850 |
|
60° |
2000 |
2000 |
1500 |
1150 |
|
69° |
2000 |
2000 |
2000 |
1700 |
|
basket quality of rated load（kg） |
280 | |||
